23 Pandas+Pyecharts | 华为游戏应用排行榜数据分析可视化

Python当打之年
可视化系列
5天前
910热度
1评论

大家好，我是欧K~

本期利用 python 的 pyecharts 可视化库制作华为游戏应用榜单信息图，包括：畅销榜、人气榜、热门榜、飙升榜、热卖榜等榜单，希望对大家有所帮助。

声明：内容仅供学习参考

1. 导入模块

import re
import pandas as pd
from pyecharts.charts import Bar
from pyecharts.charts import Grid
from pyecharts.charts import WordCloud
from pyecharts.charts import Polar
from pyecharts import options as opts

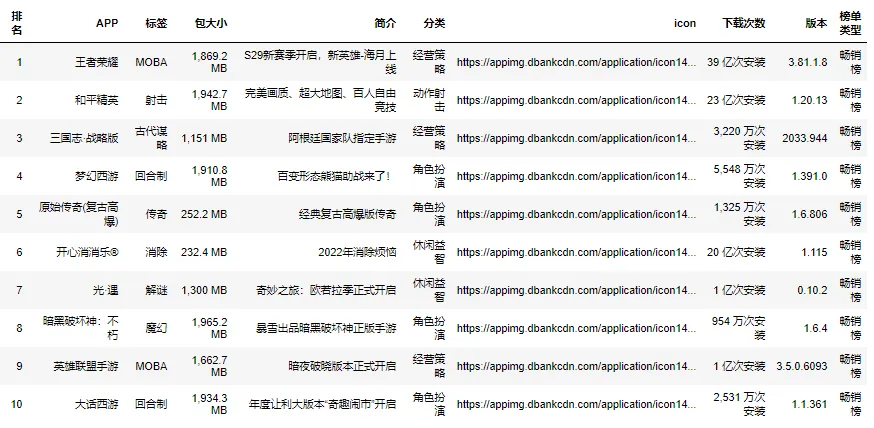

数据示例：

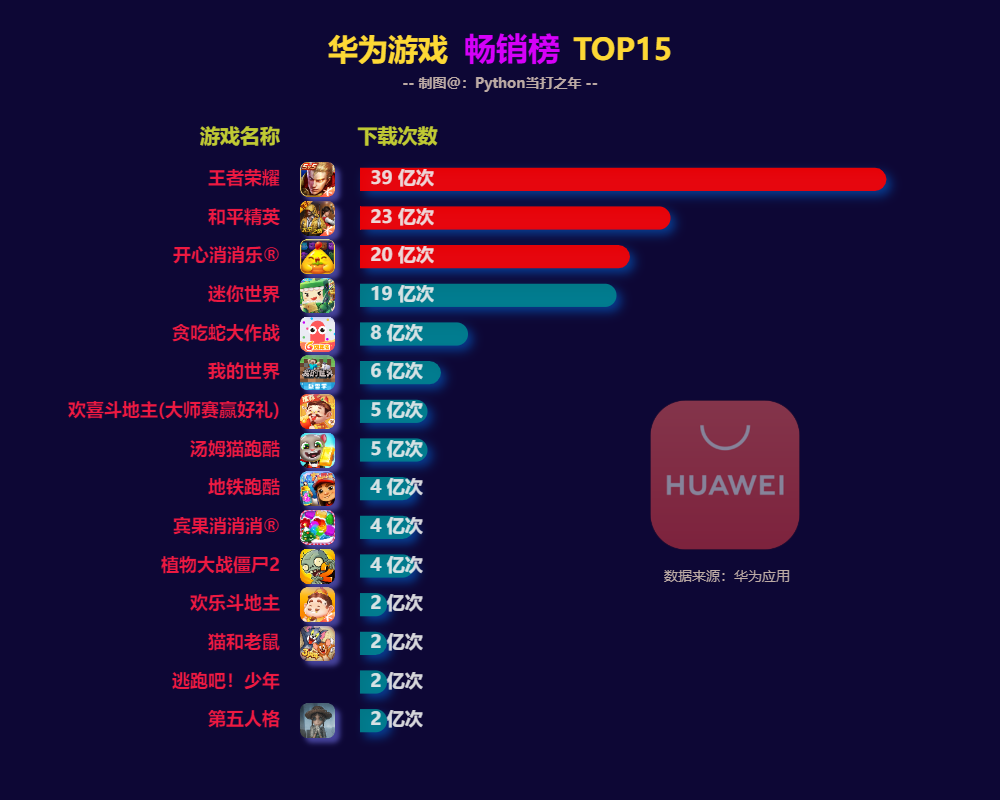

2. 畅销榜

核心代码见下：

图标：

p1 = (
        PictorialBar()
        .add_xaxis(x_data)
        .add_yaxis("",
            icons,
            label_opts=opts.LabelOpts(is_show=False),
            symbol_pos='start',
            symbol_size=35,
            is_symbol_clip=False
         )
        .set_global_opts(
            xaxis_opts=opts.AxisOpts(is_show=False),
            yaxis_opts=opts.AxisOpts(
                is_show=True,
                is_scale=True,
                axistick_opts=opts.AxisTickOpts(is_show=False),
                axislabel_opts=opts.LabelOpts(font_size=18,color='#ed1941',font_weight=700,margin=20),
                splitline_opts=opts.SplitLineOpts(is_show=False),
                axisline_opts=opts.AxisLineOpts(is_show=False)
            ),
        )
       .reversal_axis()
    )

排行柱状图：

b1 = (
     Bar()
     .add_xaxis(x_data)
     .add_yaxis('', y_data, category_gap='40%')
     .set_series_opts(
         label_opts=opts.LabelOpts(
            position='insideLeft',
            vertical_align='middle',
            horizontal_align='top',
            font_size=18,
            font_weight='bold',
            formatter=' {c} 亿次'),
      )
      .set_global_opts(
          graphic_opts=[
            opts.GraphicGroup(
                graphic_item=opts.GraphicItem(left="20%", top="16%"),
                children=[
                    opts.GraphicText(
                        graphic_item=opts.GraphicItem(
                            left="center", top="middle", z=10
                        ),
                        graphic_textstyle_opts=opts.GraphicTextStyleOpts(
                            text='游戏名称/下载次数',
                            font="bold 20px Microsoft YaHei",
                            graphic_basicstyle_opts=opts.GraphicBasicStyleOpts(
                                fill="#C0CA33"
                            ),
                        ),
                    ),
                ],
            ),
            opts.GraphicGroup(
                graphic_item=opts.GraphicItem(right="20%", top="50%"),
                children=[
                    opts.GraphicImage(
                        graphic_item=opts.GraphicItem(
                            id_="logo", right=10, top=20, z=-10, bounding="raw", origin=[75, 75]
                        ),
                        graphic_imagestyle_opts=opts.GraphicImageStyleOpts(
                            image="./upload/2017-3/2017331427312865.png",
                            width=150,
                            height=150,
                            opacity=0.5,
                        ),
                    )
                ],
            ),
        ],
        yaxis_opts=opts.AxisOpts(is_show=False),
        xaxis_opts=opts.AxisOpts(
            is_scale=True,
            type_='value',
            name_location='middle',
            position='top',
            name_textstyle_opts=opts.TextStyleOpts(font_size=14, font_weight='bold',),
            axisline_opts=opts.AxisLineOpts(is_show=False),
            axislabel_opts=opts.LabelOpts(is_show=False),
            splitline_opts=opts.SplitLineOpts(is_show=False),
            axistick_opts=opts.AxisTickOpts(is_show=False),),
            title_opts=opts.TitleOpts(title='华为游戏畅销榜TOP15',pos_top='4%',pos_left = 'center',
                                      title_textstyle_opts=opts.TextStyleOpts(color="#FDD835",font_size=30),
                                      subtitle='（制图@公众号：Python当打之年）',
                                      subtitle_textstyle_opts=opts.TextStyleOpts(color="#BCAAA4", font_size=14,
                                                                                 font_weight="bold")),
      )
      .reversal_axis()
     )
